How to Choose a Lithium Battery Charger: A Practical Guide

I. Introduction

Lithium batteries play a crucial role in modern life, from smartphones and tablets to electric vehicles and energy storage systems, everywhere. However, choosing a suitable lithium battery charger is also crucial, because it is directly related to the life of the battery and the safety of use. A high-quality charger can ensure that the battery gets a stable charging current and voltage, thereby extending the service life of the battery, while avoiding overcharge, overdischarge and other safety hazards, to protect our equipment from damage. Therefore, when choosing a lithium battery charger, we must consider carefully to ensure that we choose a product that meets demand and is safe and reliable.

II. Understand the basic knowledge of lithium battery charger

1. The working principle of lithium battery charger

The working principle of the lithium battery charger can be summarized as the following stages, each stage has its specific functions and parameters:

Initial charging:
When the charging power supply and the battery are within the normal operating temperature range, inserting the battery will start the single-charge process.
Trickle charging stage:
When the lithium battery voltage is low, the current provided by the charger will gradually increase until the set trickle charging current is reached. At this time, the battery will be charged at a lower speed until the battery voltage rises to a certain level and enters the next charging stage.
Constant current charging stage:
After the lithium battery voltage reaches the voltage set at the trickle charging stage, the battery enters the constant current charging stage. The charger will charge at a constant current until the battery voltage reaches the set value. The current at this stage is usually 0.2 times to 1 times the rated capacity of the battery, the voltage curve is relatively stable, and the current is relatively high.
Constant voltage charging stage:
When the lithium battery voltage reaches the set value, the charging current of the lithium battery begins to decline, and the charging process enters the constant voltage charging stage. The charger will maintain a constant voltage until the battery is fully charged. At this stage, the current is gradually reduced until it finally reaches the minimum current that the charger can provide. Moreover, the voltage curve at this stage is relatively stable compared to the CC stage, and the current gradually decreases.

2.Key parameters of lithium battery charger

Input voltage:
Lithium batteries have different rated voltages, and the charger needs to provide an output voltage that matches the battery.
Input current:
The output current determines the speed of charging. The higher the current, the faster the charge, but too much current can damage the battery. The output current of the charger should match the rated current of the battery.
Compatibility:
The charger should be compatible with different brands and models of lithium batteries to facilitate users to use between different devices.
Quality certification:
Choose products that have passed authoritative safety certification, such as 3C, CE, UL, etc., to ensure the quality and safety performance of the charger.

III. Choose a charger based on the needs of the application scenario

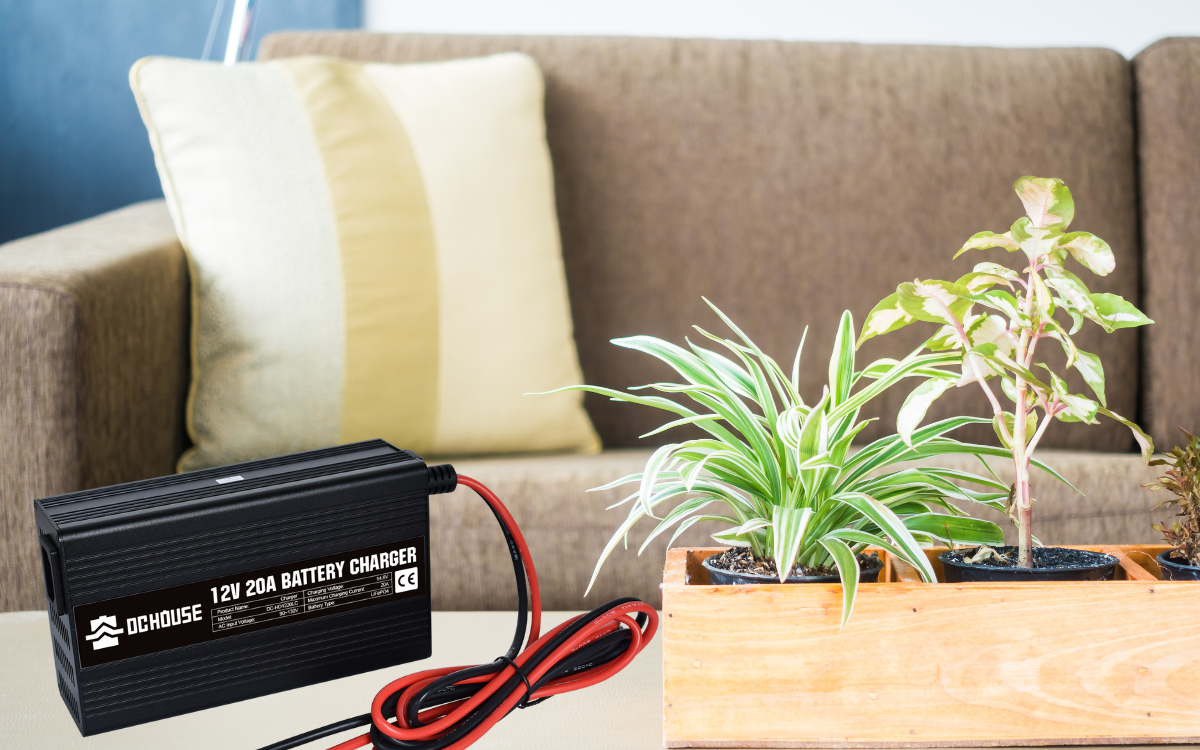

Home use needs:

Safety: Home use pays more attention to safety, and it is necessary to choose a charger with multiple safety protection functions, such as overcharge, over-discharge, overheating, short circuit and other protection functions.
Ease of use: The charger for home use should be simple in design, easy to operate, and equipped with a clear indicator light to show the charging status.

On-board charging requirements:

Fast charging: Due to the limited in-vehicle charging time, it is necessary to choose a charger with a fast charging function to fully charge the battery in a short time.
Safety: It also needs to have multiple safety protection functions to ensure that there will be no safety hazards caused by overheating, short circuit and other problems during the charging process.

IV. Maintenance and care of the charger

1. Precautions for using the charger

Correct plugging and unplugging:

Be gentle and stable when plugging and unplugging the charger to avoid damaging the charging port or causing poor contact.
Avoid overload: Do not connect multiple electrical appliances to the same socket at the same time to avoid overload and fire or electrical damage.
Temperature control: Do not place the charger in an environment with too high or too low temperature. High temperature shortens the life of electronic devices, while low temperature may cause moisture to form and damage the circuit board.

Pay attention to the charging time:

Do not overcharge to avoid damaging the battery and charger. Unplug the charger in time after full.

2. Storage and maintenance of the charger

Regular cleaning:

Use antistatic cloth to clean the charger and charging port regularly to avoid dust or debris affecting the charging effect.

Waterproof and moisture-proof:

When the charger is not in use, it should be properly stored to prevent dust, moisture, etc. from entering the charger.

Avoid external impact:

The charger should be protected from impact or extrusion to avoid damage to internal components.

Be alert to abnormal situations:

If you find abnormal situations such as excessive heating, smoking, odor, etc. of the charger, you should stop using it immediately and contact a professional for repair.

Keep away from flammable objects:

When charging, the charger should be kept away from flammable objects such as paper, curtains, etc.

V. Summary

Therefore, when choosing a lithium battery charger, be sure to ensure that the charger matches the battery model and charging requirements, and choose products that have passed authoritative safety certification to ensure the safety and efficiency of charging. At the same time, consider factors such as the charger's compatibility, charging speed, protection function, and durability to meet the needs of different usage scenarios. Avoid purchasing and using inferior or counterfeit products, follow the instructions in the manual, and ensure the correct use and maintenance of the charger to extend its service life and ensure safe and reliable charging.
